MRTG on Raspberry Pi
Christian Külker
version 0.1.6
2022-06-06
Monitoring SNMP network devices and draw pretty pictures showing how much traffic has passed through each interface.
Table Of Contents

Introduction

This article is about a software called “Multi Router Traffic Grapher” (MRTG) that can monitor the load of network interfaces and other values on one ore more computers. While this article tries to be as explicative as possible due to the nature of the subject it is targeting experienced Linux users or system administrators.

This article describe a simple installation on one server. In fact a small Raspberry Pi router. It should be very similar with any Debian based distribution on other hardware too.

One advantage of using MRTG is that it explicitly summarise the usage of network devices on daily, weekly and monthly basis in terms of speed. This is useful, if you are connected with a limited internet connection and you need to to know how fast your are.

Dependencies

The MRTG is usually a multi server installation. One server can be a web server that collects and display aggregated log data. Other servers or switches can be queried via SNMP. For this article everything is installed on one machine.

Web Server

One dependency for MRTG is the web server. That can basically any web server. Out of curiosity I tested Nginx (speak: engine x) and it works. However in the past, when MRTG was created, Apache was more common. For this reason many guides on the web have some tricks when it comes with the usage of Apache. You might consider Apache2, if you need certain features.

Configuring of Nginx for MRTG

The installation is straight forward:

aptitude update
aptitude install nginx

Copy the following into the file /etc/nginx/sites-available/mrtg

server {
        listen 8080 default_server;
        listen [::]:8080 default_server;

        root /var/www/mrtg;
        index index.html;
        server_name _;
        location /mrtg/ {
                try_files $uri $uri/ =404;
        }
}

Then make a link and restart Nginx

cd /etc/nginx/sites-eanabled
ln -s /etc/nginx/sites-available/mrtg .
service nginx restart

Configuration of Apache2 for MRTG

The configuration can be done in many ways. MRTG can be configured as main host, virtual host with and without SSL. The following configuration is using the Debian default site configuration and do not set up MRTG as a site, but as an configuration snippet for Apache2.

Copy the following content into the file /etc/apache2/conf-available/mrtg.conf. The values for AllowOverride and Options need to be made specific for the server. This is just an example.

  <IfModule mod_alias.c>
    Alias /mrtg   /var/www/mrtg
  </IfModule>

  <Directory /var/www/mrtg/>
    Options SymLinksIfOwnerMatch
    AllowOverride None
  </Directory>

  ErrorLog  /var/log/apache2/mrtg-error.log
  CustomLog /var/log/apache2/mrtg-access.log combined

This kind of configuration can be enabled by a2enconf mrtg.

SNMP Server

Install the SNMP server and tools.

    aptitude install snmp snmpd

Check if the server is running with one (!) of the following commands.

     ps ax|grep snmp|grep -v grep
     service snmpd status

The first command should give something like:

29529 ?        S      0:00 /usr/sbin/snmpd -Lsd -Lf /dev/null -u snmp \
-g snmp -I -smux mteTrigger mteTriggerConf -p /run/snmpd.pid

Test the server. The following command should give some output

snmpwalk -v1 -cpublic localhost

iso.3.6.1.2.1.1.1.0 = STRING: "Linux pi 4.4.9-v7+ #884 SMP Fri \
May 6 17:28:59 BST 2016 armv7l"
iso.3.6.1.2.1.1.2.0 = OID: iso.3.6.1.4.1.8072.3.2.10
iso.3.6.1.2.1.1.3.0 = Timeticks: (38719) 0:06:27.19
iso.3.6.1.2.1.1.4.0 = STRING: "Me <me@example.org>"
iso.3.6.1.2.1.1.5.0 = STRING: "pi"
iso.3.6.1.2.1.1.6.0 = STRING: "Sitting on the Dock of the Bay"
iso.3.6.1.2.1.1.7.0 = INTEGER: 72
    ...

As it can be seen from this output some values in /etc/snmp/snmpd.conf are wrong. The e-mail address and the location “Sitting on the Dock of the Bay”. However for a basic function a change it is not needed. After your complete installation works, make a backup of that configuration file and update missing/ wrong entries.

Especially under Debian the problem is a very limiting default configuration that do not give read access to most of the MIB tree. To change this, for example, the following -V systemonly has to be removed from rocommunity public default for IPv4 in /etc/snmp/snmpd.conf and the snmpd service has to be restarted. If one uses IPv6 a different line need to be changed.

before:

snmpwalk  -v 2c -c public localhost |wc -l
47

after:

snmpwalk  -v 2c -c public localhost |wc -l
8936

Installation of MRTG

The installation of MRTG is easy:

aptitude install mrtg

MRTG Configuration

The first step is to secure the default configuration. The reason to reuse the name mrtg.cfg is, that crond or a systemd timer is most likely already configured to use this fil, so we do not need to modify crond or systemd. For Debian 10 Buster MRTG uses cron in /etc/cron.d/mrtg and updates the graphs every 5 minutes and write log entries to /var/log/mrtg/mrtg.log. You should check the log file for errors in case the configuration is updated.

cp -a /etc/mrtg.cfg /etc/mrtg.cfg.`date +'%F'`

The configuration of the web interface is a very crude and archaic process, compared to INI or YAML files. The configuration is done via /etc/mrtg.cfg and applied by a command since the mrtg command is executed via a scheduler: crond or systemd. The format of mrtg.cfg can be looked up via the mrtg-reference.

Adding Entries/ Graphs

Most entries are added via SNMP OIDs to the file mrtg.cfg. There fore looking up the MIB and figuring out which value can be reached via snmpget is the first thing to do.

A graph entry can be generated by a set of configuration keywords belonging to one entity. Lets call the entity ‘hobbit’ for example, than it looks in an abstract way like this:

KeyWord1[hobbit]: Value1
KeyWord2[hobbit]: Value2
KeyWord3[hobbit]: Value3
KeyWord4[hobbit]: Value4
KeyWord5[hobbit]: Value5

One of the most important keywords is the Target keyword. The value of a keyword is called an argument in MRTG, probably because a keyword is related to a command. For the Target keyword different commands can be executed, which manifests it self in different argument classes. So to understand you have to reverse the thinking. The kind of value to a keyword determines with command is executed. The following classes are defined for the keyword target:

As this is quite extensive, only the Explicid OIDs class is used. For this to work two OIDs have to be used. The reason is that per default MRTG plots 2 variables against time. Usually this will be network bytes in and out. So, to plot a single value the same OID has to be used twice.

The format is:

Taget[NAME]: OID_1&OID_2:COMMUNITY@HOST

  NAME: arbitrary word
  OID_1: numerical SNMP OID
  OID_2: numerical SNMP OID
  COMMUNITY: SNMP community, for example 'public'
  HOST: hostname of machine to query, for example 'localhost'

The format can be more flexible. For all places where COMMUNITY@HOST can be used the real format of this can be

COMMUNITY@HOST[:[port][:[timeout][:[retries][:[backoff][:[version]]]]][|name]

Also port can be more flexible. See mrtg-reference for examples and explanation.

What has to be understood is that the value of Target is interpolated in a very MRTG specific way and some expressions are extrapolated. So addition, subtraction, division, multiplication, brackets and piping to custom commands works. It is a complete language by itself.

When you find a valid OID, for example .1.3.6.1.4.1.2021.4.6 for the total amount of free main memory, you sometimes have to add a 0 to make MRTG and SNMP happy: .1.3.6.1.4.1.2021.4.6.0.

A target for the value would look like this:

Target[hobbit]: .1.3.6.1.4.1.2021.4.6.0&.1.3.6.1.4.1.2021.4.6.0:public@localhost

The full example for the measurement of free main memory on a Debian 10 Buster Linux Raspberry Pi 4 with 4 GB main memory looks like this:

Global Configuration:

WorkDir: /var/www/mrtg
WriteExpires: Yes
EnableIPv6: no

Free Main Memory:

Title[localhost-free]: Localhost free main memory
PageTop[localhost-free]: <H1>Localhost - Memory Free</H1>
Target[localhost-free]: .1.3.6.1.4.1.2021.4.6.0&.1.3.6.1.4.1.2021.4.6.0:\
public@localhost
MaxBytes[localhost-free]: 3918772
YLegend[localhost-free]: memory
ShortLegend[localhost-free]: Bytes
LegendI[localhost-free]: bytes
Legend1[localhost-free]: bytes free
Options[localhost-free]: integer, gauge, nopercent, growright, unknaszero, noo

The value for MaxBytes can be queried with SNMP: (A working configuration for snmpd is assumed here - if this does not give a value, either the snmpd configuration need set up correctly or it is a different hardware)

snmpget -v 2c localhost -c public .1.3.6.1.4.1.2021.4.5.0
iso.3.6.1.4.1.2021.4.5.0 = INTEGER: 3918772

Then the configuration needs to be activated

LANG=C indexmaker /etc/mrtg.cfg > /var/www/mrtg/index.html

Then the configuration needs to be executed twice, as first run throws errors due to an empty database.

LANG=C /usr/bin/mrtg  /etc/mrtg.cfg
LANG=C /usr/bin/mrtg  /etc/mrtg.cfg

Semi Automatic Configuration

A semi automatic configuration for network interfaces is possible with the cfgmaker script.

Since one interface, the wlan0, do not deliver a speed value, to be able to use it with MRTG, it is necessary to set a value with the -zero-speed= parameter

LANG=C cfgmaker --zero-speed=100000000 public@127.0.0.1  > /etc/mrtg.cfg

MRTG has a limited capability to scan hardware and create a configuration for it.

LANG=C cfgmaker public@127.0.0.1 --ifref=descr --output /etc/mrtg.cfg

This basically generates 3 interface graphs for lo, eth0 and wlan on the Raspberry Pi 4. Some commented out. The eth0 section looks like:

#### Interface 2 >> Descr: 'eth0' | Name: 'eth0' | Ip: '192.168.168.35' | \
Eth: 'dc-a6-32-78-c1-d5' ###

Target[127.0.0.1_2]: 2:public@127.0.0.1:
SetEnv[127.0.0.1_2]: MRTG_INT_IP="192.168.168.35" MRTG_INT_DESCR="eth0"
MaxBytes[127.0.0.1_2]: 125000000
Title[127.0.0.1_2]: Traffic Analysis for 2 -- monitor
PageTop[127.0.0.1_2]: <h1>Traffic Analysis for 2 -- monitor</h1>
    <div id="sysdetails">
      <table>
        <tr>
          <td>System:</td>
          <td>monitor in monitor.c8i.org</td>
        </tr>
        <tr>
          <td>Maintainer:</td>
          <td>c  &lt;c@c8i.org&gt;</td>
        </tr>
        <tr>
          <td>Description:</td>
          <td>eth0  </td>
        </tr>
        <tr>
          <td>ifType:</td>
          <td>ethernetCsmacd (6)</td>
        </tr>
        <tr>
          <td>ifName:</td>
          <td>eth0</td>
        </tr>
        <tr>
          <td>Max Speed:</td>
          <td>125.0 MBytes/s</td>
        </tr>
        <tr>
          <td>Ip:</td>
          <td>192.168.168.35 (monitor.c8i.org)</td>
        </tr>
      </table>
    </div>

Even though the scanning understands that this is the eth0 interface, the name of the title is just the number ‘2’. Which might work well for switches, but not for hosts. Clicking on the graph however show the information.

Example Configuration For CPU Idle Time

This example show the configuration of the CPU idle time for the Raspberry PI 4 and shows how simple mathematical terms are realized inside the target keyword.

Title[localhost-CPU]: Localhost CPU load
PageTop[localhost-CPU]: <H1>Localhost - CPU Idle Time (%)</H1>
Target[localhost-CPU]: 100 - .1.3.6.1.4.1.2021.11.11.0&\
.1.3.6.1.4.1.2021.11.11.0:public@localhost
MaxBytes[localhost-CPU]: 100
YLegend[localhost-CPU]: CPU %
ShortLegend[localhost-CPU]: %
LegendI[localhost-CPU]: CPU
Legend1[localhost-CPU]: CPU usage
Options[localhost-CPU]: integer, gauge, nopercent, growright, unknaszero, noo

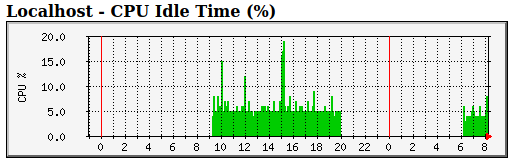

CPU Idle Time

Configuring MRTG Web output

One can of course generate an index page by hand, which is probably recommended. A quick and dirty approach is to use the indexmaker script. This creates a page with one graph per target and a link to the sub-page of the target.

mkdir -p /var/www/mrtg
LANG=C indexmaker /etc/mrtg.cfg > /var/www/mrtg/index.html

Updating The Data For The Web Page

Manually:

LANG=C mrtg

Of course this is already configured with crond.

Access The New Installed MRTG

Point your web browser to the IP of your MRTG machine. http://<IP-TO-MRTG-HOST>/ or http://<IP-TO-MRTG-HOST>/PATH.

Testing And Debugging

SNMP And SNMPD

For many functionality of MRTG a working and well configured snmpd is mandatory. Version 1 can be tested with:

snmpstatus -c public -v1 localhost

This would be considered an error for example:

Error in packet.
Reason: (noSuchName) There is no such variable name in this MIB.
Failed object: iso.3.6.1.2.1.4.10.0

Error in packet.
Reason: (noSuchName) There is no such variable name in this MIB.
Failed object: iso.3.6.1.2.1.4.3.0

[UDP: [127.0.0.1]:161->[0.0.0.0]:45109]=>[Linux monitor 5.4.79-v7l+ #1373 SMP \
Mon Nov 23 13:27:40 GMT 2020 armv7l] Up: 0:00:54.02
Interfaces: 0, Recv/Trans packets: 0/0 | IP: 0/0

Version 2c can be tested with

snmpstatus -c public -v2c localhost

This would considered a success:

[UDP: [127.0.0.1]:161->[0.0.0.0]:49633]=>[Linux monitor 5.4.79-v7l+ #1373 SMP \
Mon Nov 23 13:27:40 GMT 2020 armv7l] Up: 0:03:16.30
Interfaces: 0, Recv/Trans packets: 0/0 | IP: 0/0

To query the kernel on Debian 10 Buster on Raspberry PI 4 do

snmpget -v2c -cpublic localhost iso.3.6.1.2.1.1.1.0
iso.3.6.1.2.1.1.1.0 = STRING: "Linux monitor 5.4.79-v7l+ #1373 SMP Mon Nov \
23 13:27:40 GMT 2020 armv7l"

There are different approaches to query the memory, one is:

 # UCD-SNMP-MIB::memTotalReal
snmpget -v2c -cpublic localhost .1.3.6.1.4.1.2021.4.5.0
iso.3.6.1.4.1.2021.4.5.0 = INTEGER: 3918772

Run MRTG Manually

The cron job defined and runs MRTG as follows:

if [ -x /usr/bin/mrtg ] && [ -r /etc/mrtg.cfg ] && \
[ -d "$(grep '^[[:space:]]*[^#]*[[:space:]]*WorkDir' /etc/mrtg.cfg | \
awk '{ print $NF }')" ]; then mkdir -p /var/log/mrtg ; \
env LANG=C /usr/bin/mrtg /etc/mrtg.cfg 2>&1 | tee -a /var/log/mrtg/mrtg.log ; \
fi

This can be used to run MRTG immediately and there is no need to wait 5 minutes.

Running MRTG With Different Log Information

LANG=C /usr/bin/mrtg -debug cfg /etc/mrtg.cfg

Debugging SNMP

This helps to debug snmpget and other SNMP operations as well as some script debugging.

LANG=C /usr/bin/mrtg -debug snpo /etc/mrtg.cfg

A script failure might look like

--snpo: run external sh /etc/mrtg/mrtg_ping 8.8.8.8
--snpo: External result:100 out:undef uptime:unknown name:unknown

However in this case the script do not return all values, so this is actually intended.

Packages

mrtg                - multi router traffic grapher
mrtg-contrib        - multi router traffic grapher (contributed files)
mrtg-ping-probe     - Ping module for Multi Router Traffic Grapher
mrtg-rrd            - Generating graphs for MRTG statistics (CGI)
mrtgutils           - Utilities to generate statistics for mrtg
mrtgutils-sensors   - Utilities to generate statistics for mrtg (from lm-sensors)
pcp-import-mrtg2pcp - Tool for importing data from MRTG into PCP archive logs

Known Problems and Caveats

Critique

Pros

Cons

History

Version Date Notes
0.1.6 2022-06-06 Change shell to bash
0.1.5 2021-05-18 Updates for Raspberry PI 4
0.1.4 2021-01-02 Updates for Debian 10 Buster
0.1.3 2020-06-06 Formatting for Quick-Guide
0.1.2 2016-06-25 Add caveats section
0.1.1 2016-06-21 Add Nginx configuration
0.1.0 2016-06-20 Initial release
